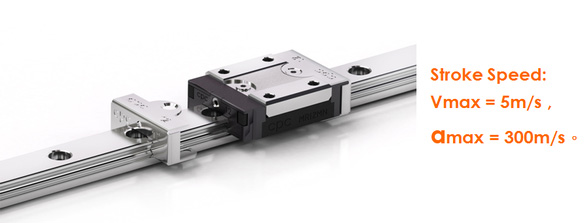

Acceleration testing machine

The Acceleration testing machine is a slide-crank mechanism and it uses flywheel as the crank.Working under a limited stroke, it helps block to reach higher acceleration and velocity.
Moreover with rotation velocity of the motor, it can be tested the service life under different acceleration and velocity.

• Inject or replenish grease in all directions.
• Dust protection of double wipe blade design in the end seal have Standard type and reinforcement type.
• Available for special treatment of surface.
• Equal load capacities in any directions.
• Available for vertical (downward) and reverse (upward) bolting track rail.
• High rigidity structure.
• Environment protection and economic lubrication Long-term maintenance free, minimum amount of lubrication.

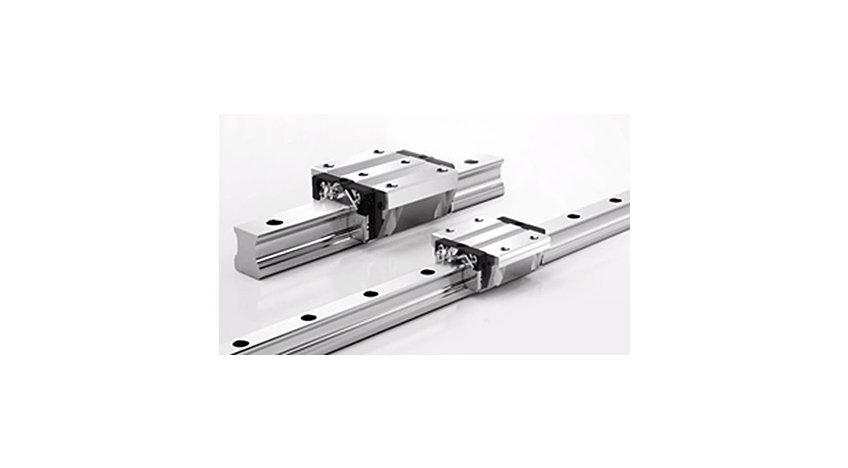

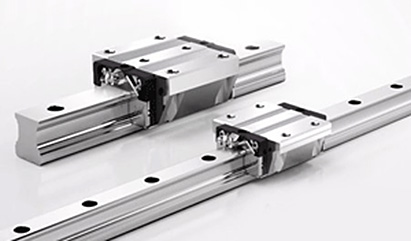

cpc ARC/HRC/ERC Ball Type Linear Guide Series design incorporate four rows of re-circulation steel balls arranged in the O-type and 45° contact angle with the raceway. The rigidity of track rail under moment and torsion is very much increased by adopted the O-type design.
Although it is same in dimension constrain, devise larger diameter and more amount of steel balls, provide higher load capacities, moments and rigidity owing to its design.

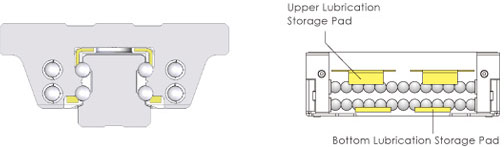

Inner oil storage and oil supply system design

Inner PU Lubrication Storage Pad design does not increase length of runner block and can contact directly with all balls.
Customer can inject lubrication oil through lubrication holes and can save enough lubrication oil within the PU Lubrication storage pad to ensure long term lubrication effects, conforming to environment protection needs and lowering maintenance costs.
Excellent performance when used in short stroke.

Dustproof design

Standard seals (S)-Directly in contact with the rail surface, having better dustproof and lubrication holding capabilities.
cpc recommends using this type of seals in environments that is exposed for long durations to high dusts and Saw wood dust, etc.
The friction will be higher than standard seals

Low friction seals (B)-Suitable for most conditions, with slight contact with the rail, and having both scraping
function with low friction.

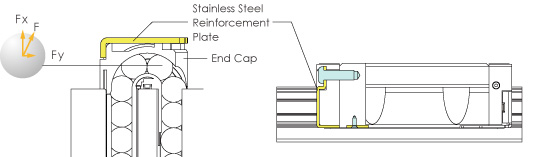

Reinforcement plate patent design

Using 2 stainless steel reinforcement plates, the L type design can fasten the screws onto the top and bottom of the runner block, reinforcing the rigidity of the end caps and cladding.

Vmax >10 m/s amax >500m/s2

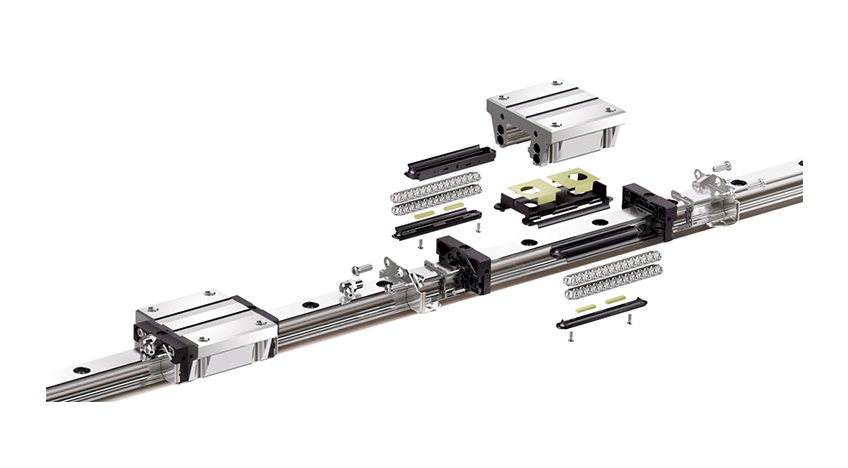

NEW Products-ARC/HRC/ERC (Ball Type Linear Guide ARC/HRC/ERC-Series)

• Europan O-type Arrangement YS Asian X-type Arrangement
• Reinforcement Plate : Max.Speed : 10m/s
• Ball Chain : Low Noise
• Lubrication Pad : long term lubrication effects

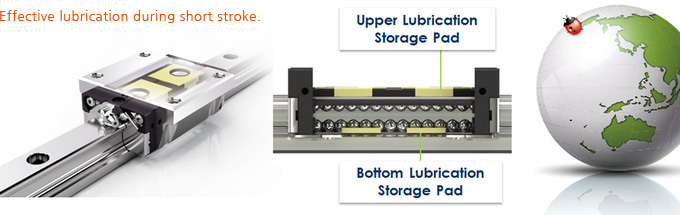

Inner PU Lubrication Storage pad design

Inner PU Lubrication Storage Pad design, remain the same length of runner block and is able to contact directly with all balls.
It can inject lubriccation oil through lubrication holes and is able to ensure long term lubrication effects. The pad has excellent performance when use in short stroke, displayin excellent and effective luvrication. it also lower the maintenance costs.

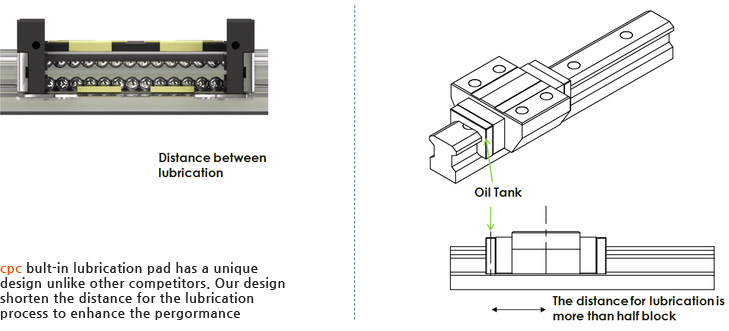

Linear Guide Lubrication comparison

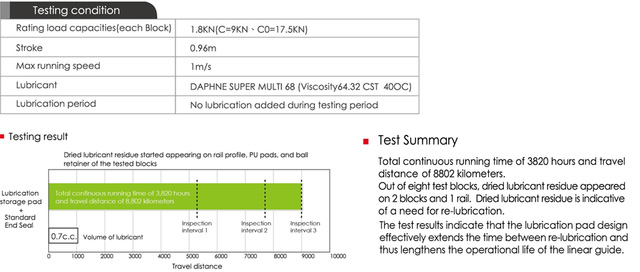

ARC/HRC series eco-lubrication test

AR15 Lubrication Storage Pad Testing Data

Tested products : AR15 blocks with lubrication storage pads, 8pieces, and AR15 rails, N accuracy grade,
1500mm Length, 4 pieces

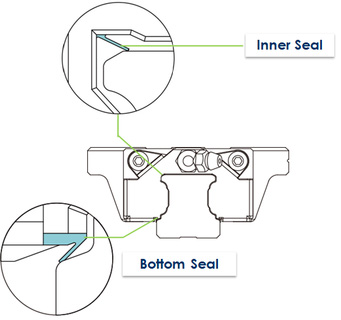

Complete Dust-Proof Design(Ball type Linear Guide ARC/HRC/ERC-Series)

Build-in Bottom Seal Inner Seal End Seal

Combining both bottom and internal seals, ehect excess dust from block. With this new design,
lubrication oil can be perfectly sealed within the block, decrease oil usage and increase service life of block.

Saw wood dust Test

Test Content

This test uses a total of 4 groups of products(using 2rails match with 2 lubricvations methods)by putting in
saw wood dust and moving them within.

Runner Block
1. Installation of reinforcement seals(S), using grease
2. Installation of lubrication storage Pad adn reinforcenment seals(SZ), using grease

Rail
1. Tapped from top rail plus hole plugs(AR)
2. Tapped from bottom rail (ARU)

Testing conditions

1. stroke=600mm
2. Total testing stroke=30m

Test Result

The taped from top rail has hole plusg, leading to unevenness of rail, allowing some saw wood dust to enter the runner block velly area.
The 2 sides of the runner block velly area is protected by stainless steel reinforcement plates and end seals that completely protect the call bearing, so the ball bearing runner area is fully protected from Saw wood dust.

The tapped from bottom rail ha even rail surgace, so the ball bearing runner area is fully protected from Saw Wood dust.

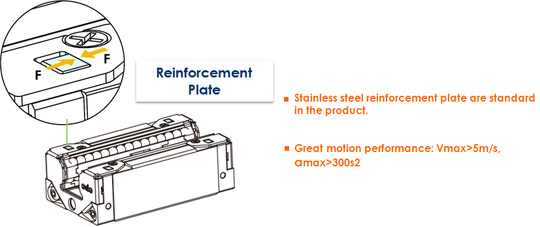

Reinforcement Plate Patent Design(Ball Type Linear Guide ARC/HRC/ERC-Series)

Reinforcement Plate

Using 2 stainless steel reinforcement plates, the L type design can fasten the screws onto the top and bottom of the runner block, reinforcing the rigidity of the end caps and cladding.

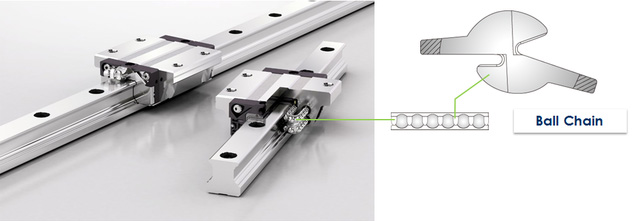

New Feature-Ball Chain Design

• Long Service Life
• Low Noise
• Smooth Motion

CPC Ball Chain Type can prolong the linear guide service life due to the dlimination of wear caused by friction between balls The absence of friction between balls results in reduced heat generation during high speed rotation.

Adventage-Better Load Capacity

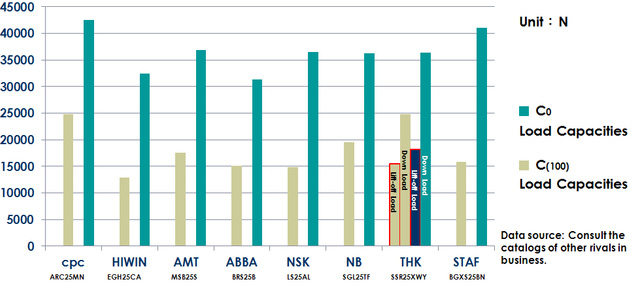

cpc ARC25MN, Compare with Competitors

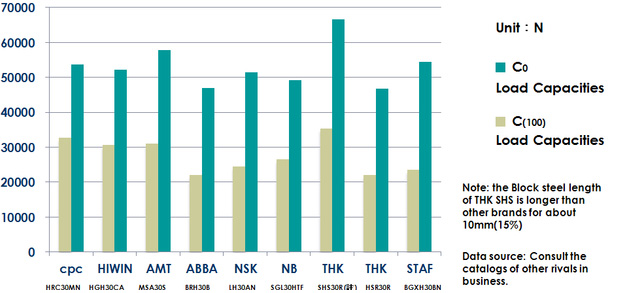

cpc HRC30MN, Compare with Competitors

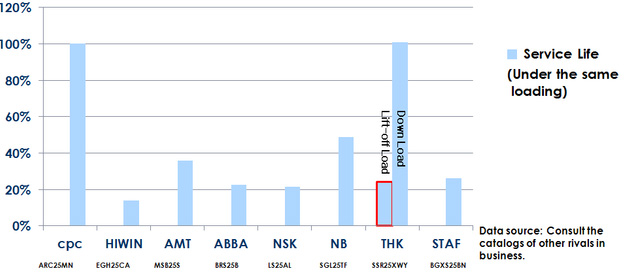

Adventage-Better Service Life

cpc ARC25MN, Compare with Competitors

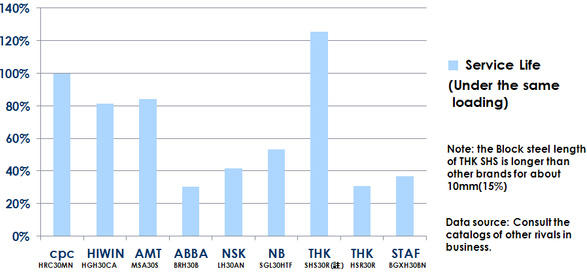

cpc HRC30MN, Compare with Competitors

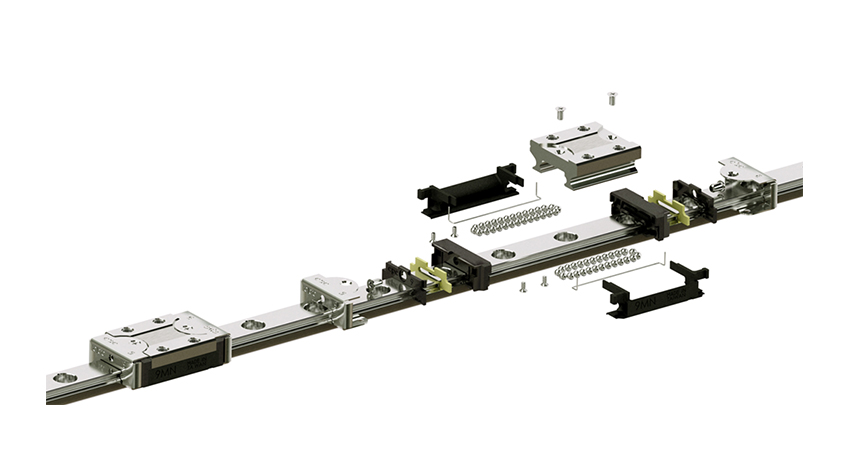

MR Miniature Linear Guide Series(Miniature linear guide MR-Series)

Advantages

• Embedded inverse hook design : Increase product reliability and decrease cost
• Lubrication Pad : Maintenance Free

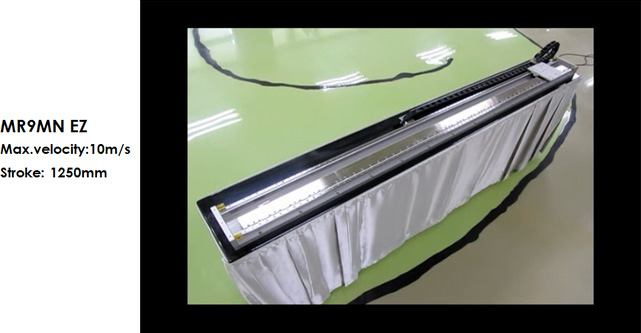

• Reinforcement Plate : V max = 10m/s
• Bottom seal : dust Proof design

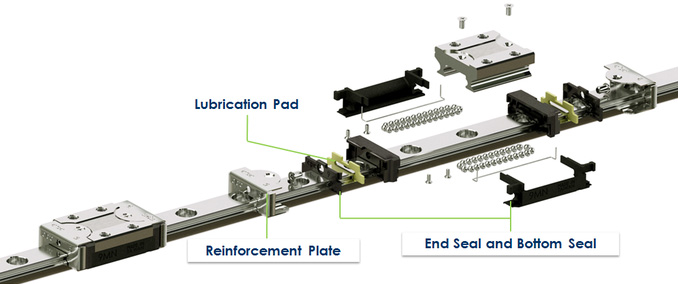

MR Series-Eco-friendly lubrication storage pad(Ball Type Linear Guide MR Series)

Build-in lubrication storage pad design

Lubrication injection holes are featured at both ends of the runner block. As the balls circulate during movement of the block, the stainless steel balls carry lubrication oil to raceway, thuse efficiently lubricate the balls and raceway

• Lower maintenance cost, increase service life

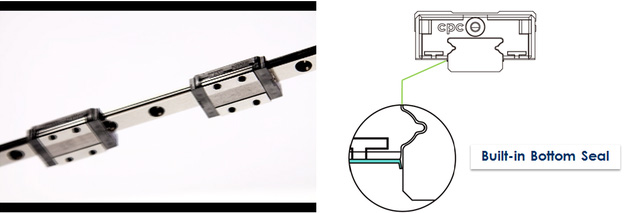

MR Series- Bottom Seal Design(Miniature Linear guide MR-Series)

Built-in Bottom Seal :
MR-M/W SU.AU Built-in Botton Seal & MR=M/W ZU Lubrication Pad + Built-in Bottom Seal

cpc now lauches the Built-in Bottom Seal to avert particles of dirt from going in the raceway.
the new function can also prevent grease and oil leakin to prolong MR series relubrication interval.

• Prevent dirt from entering the raceway, increase service life

MR series-Stainless Steel Reinforcement Plate(Miniature linear guide MR-Series)

Stainless Steel Reinforcement Plate :

Runner blocks are equipped with two stainless steel plates which reinforce the end-cap from end to end.
This sturdier design supports higher running speeds. the plate can also function as scrapers to facilitate smooth travel.

MR series-Stainless Steel Reinforcement Plate(Miniature linear guide MR-Series)

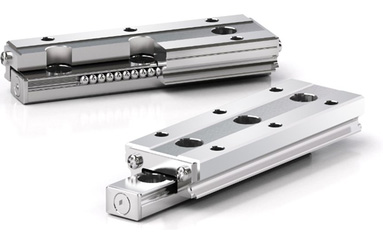

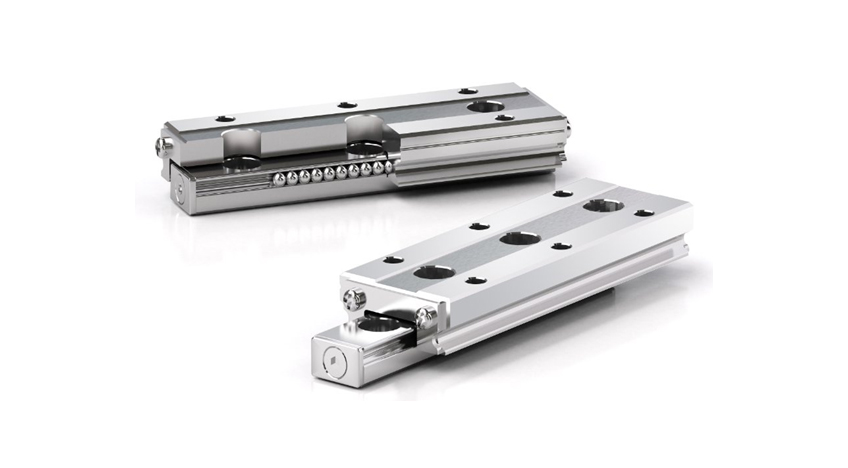

Product Introduction-ST Miniature Stroke Side Series(ST Miniature Stroke Slide series)

High load and high moment capacity

The ball track has a Gothic profile design with a 45 degree contact angle to achieve equalload capacity in a mono block.
This provice More space for the larger rolling elements while enhancing the load and moment capacity.

• High running accuracy and smoothness
• Temperature : Hignest temperature : 300°C
• Easy Mounting
• Dual plate design
• Anti- corrosion feature

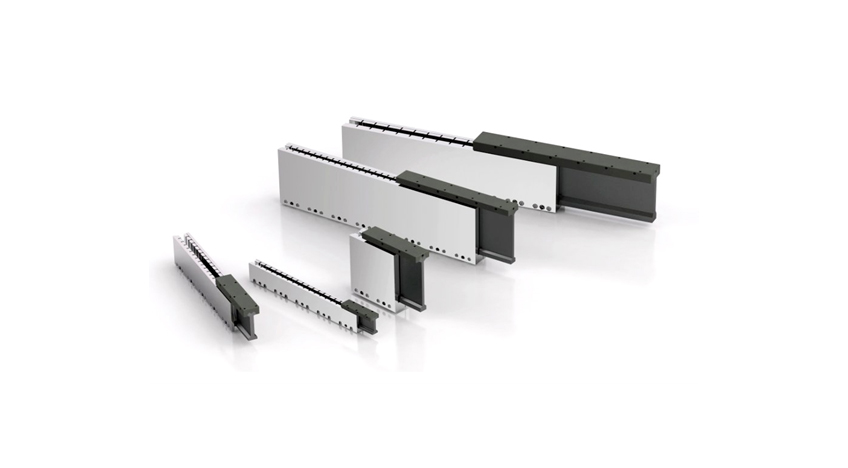

Product Intoroduction-Linear Motor(Linear Motor LM-Series)

Realization of high speed and high precision :

Hign rigidity direct drive. Close circuit system corresponding superior precision control with smoothness high efficient operation.
Ironless type linear motor, smooth and stable during low speed movement.

Simple mechanism structure :

Multiple forcers can be individually poerated on a single magnetic way. Simple multiple forcers system connection.

Applicable in high cleanness required environment.

Withour conventional transmission structure, gear fap do not exist in linear motor. No more dirt accumulated between gear gaps.
Without ball screws no more lubrication grease need to be apply, prefect for clean room environment.

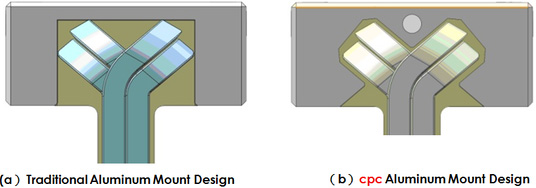

Extra 30~80% Pushing force under the same size.

as the result of JMAG, the overlapped windings produce 150% more force than non-overlapped windings. Uner identical coil assembly winding length, overlappled winding can make more efficient use of available space than non-overlapped windings.
